EtherCAT controller

The Galil DMC-52xx0 is a pure EtherCAT controller with the ability to control up to 32 drives and 2 I/O modules.

0 August 2, 2016
Staff

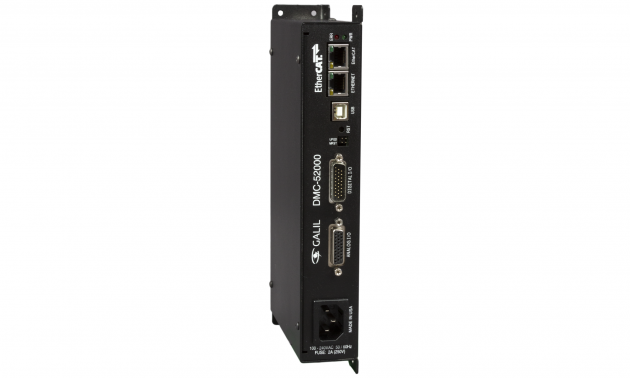

Galil DMC-52xx0 EtherCAT masterThe Galil DMC-52xx0 EtherCAT master 32 axis motion controller is a pure EtherCAT controller with the ability to control up to 32 drives and 2 I/O modules. This space efficient package also provides uncommitted I/O for easy integration into any EtherCAT application. The DMC-52xx0 is offered in 2, 4, 8, 16, and 32 axis formats. Coordinated moves can be done within banks of up to 8 axes allowing for minimal changes of Galil’s programming language. The DMC-52xx0 operates in Cyclic Synchronous Position mode (CSP). In this mode, the servo control loop is closed on the EtherCAT drive while the Galil controller sends motion profile commands at a rate of 1 kHz. The DMC-52xx0 can be used for applications involving jogging, point-to-point positioning, position tracking, contouring, linear and circular interpolation, electronic gearing, ECAM, and PVT. The DMC-52xx0 makes configuration and programming easy with just a handful of EtherCAT configuration commands and Galil’s intuitive, two-letter programming language. The DMC-52xx0 features 8 uncommitted opto-isolated inputs and 8 uncommitted opto-isolated high power outputs. It also includes 8 uncommitted analog inputs and 8 uncommitted analog outputs (analog I/O is 12-bit standard, 16-bit option available). The DMC-52xx0 is packaged in a compact metal enclosure measuring 9.75” x 5.00” x 1.60” and is powered by a single 90-250 VAC supply.

www.galilmotioncontrol.com
