Basler’s adds four GigE models to its ace U product line with lower resolutions up to 1.6 MP.

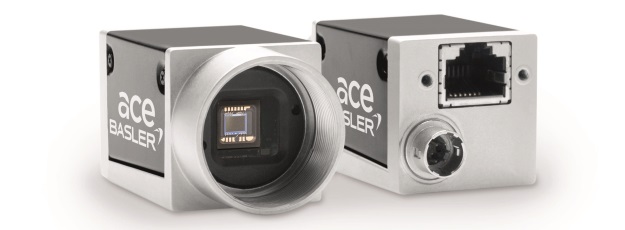

Basler released four ace U GigE models with resolutions of VGA and 1.6 megapixels. Equipped with the IMX287 and IMX273 sensors from Sony’s Pregius series, they deliver up to 291 frames per second. The IMX273 sensor offers Pregius image quality, high speeds and low noise, while IMX287 sensor has twice the pixel size with an edge length of 6.9µm. Both sensors feature the Ultra Short Exposure Time Mode, which enables exposure times of up to 1µs. The four new ace U GigE cameras include the feature set PGI, a combination of 5×5 debayering, color-anti-aliasing, denoising and improved sharpness. The models also offer GigE Vision 2.0 features such as PTP.
